Motion Analysis & Training

Smart Gravity 3D

The dynamic and multi-directional weight relief system

  • Objective assessment

    The association of Smart Gravity 3D with D-WALL makes it possible to qualitatively and quantitatively analyze movement in real time according to precise parameters, for an objective evaluation of the patient.

  • Training

    Thanks to the dynamic and multidirectional 3D relief system it is possible to manage hundreds of exercises on patients with walking and balance problems.

  • Weight relief

    Only the vertical axis is actively controlled, so that patients can be unloaded from variable percentages up to 80% of their body weight.

Ask for information Download Catalogue

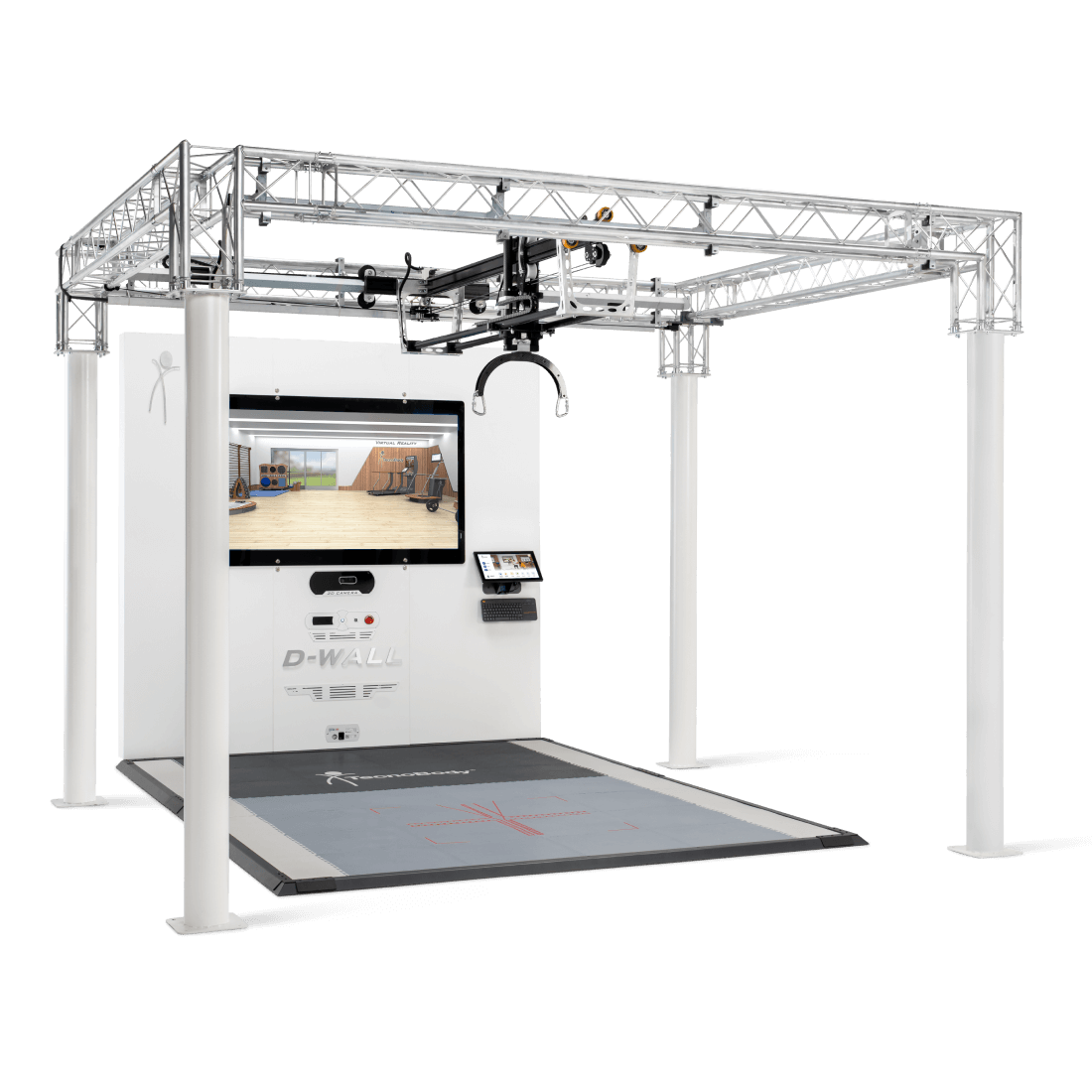

Smart Gravity 3D is the innovative dynamic and multidirectional weight relief system applied to D-WALL Elite and designed to allow three-dimensional movements for motor and neuromotor rehabilitation.
Only the vertical axis is actively controlled, so that the patient can be unloaded from variable percentages up to 80% of their body weight. Furthermore, the structure with four load-bearing pillars allows the installation of the system to be separated from the ceiling fixing. Smart Gravity 3D is the ideal system for rehabilitating the patient in a hospital setting or in an advanced centre, opening up new and unexplored possibilities.

Anti-Gravity System

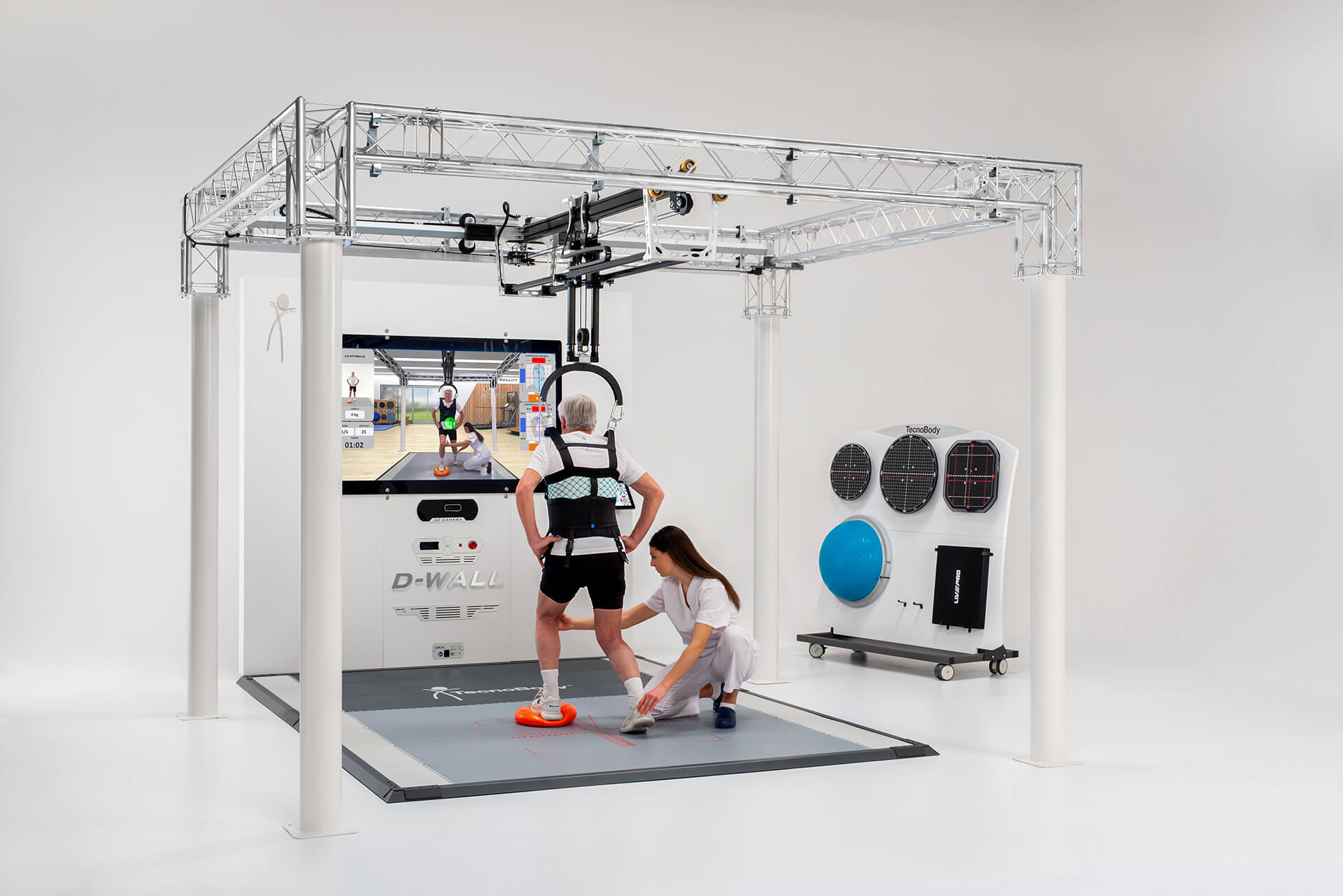

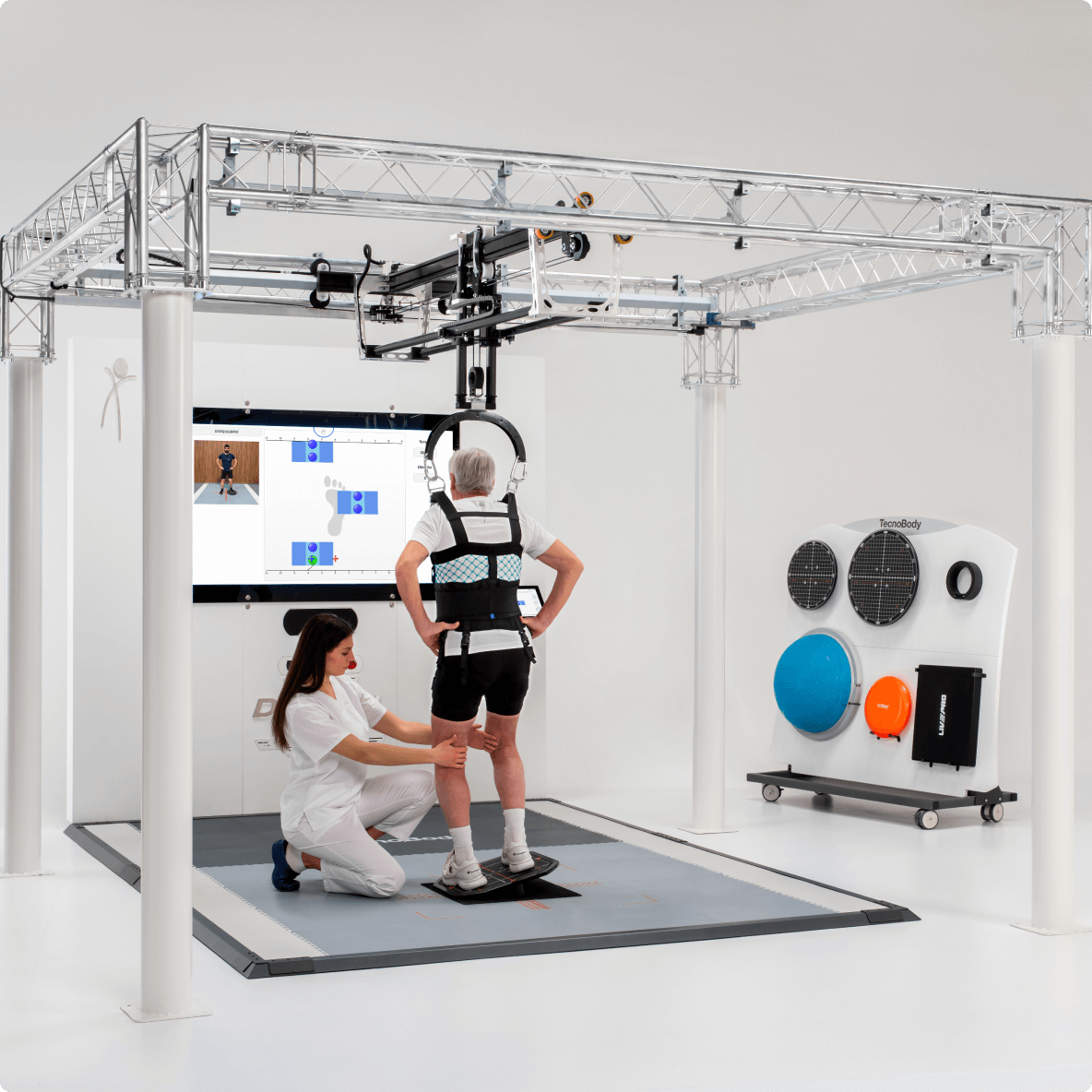

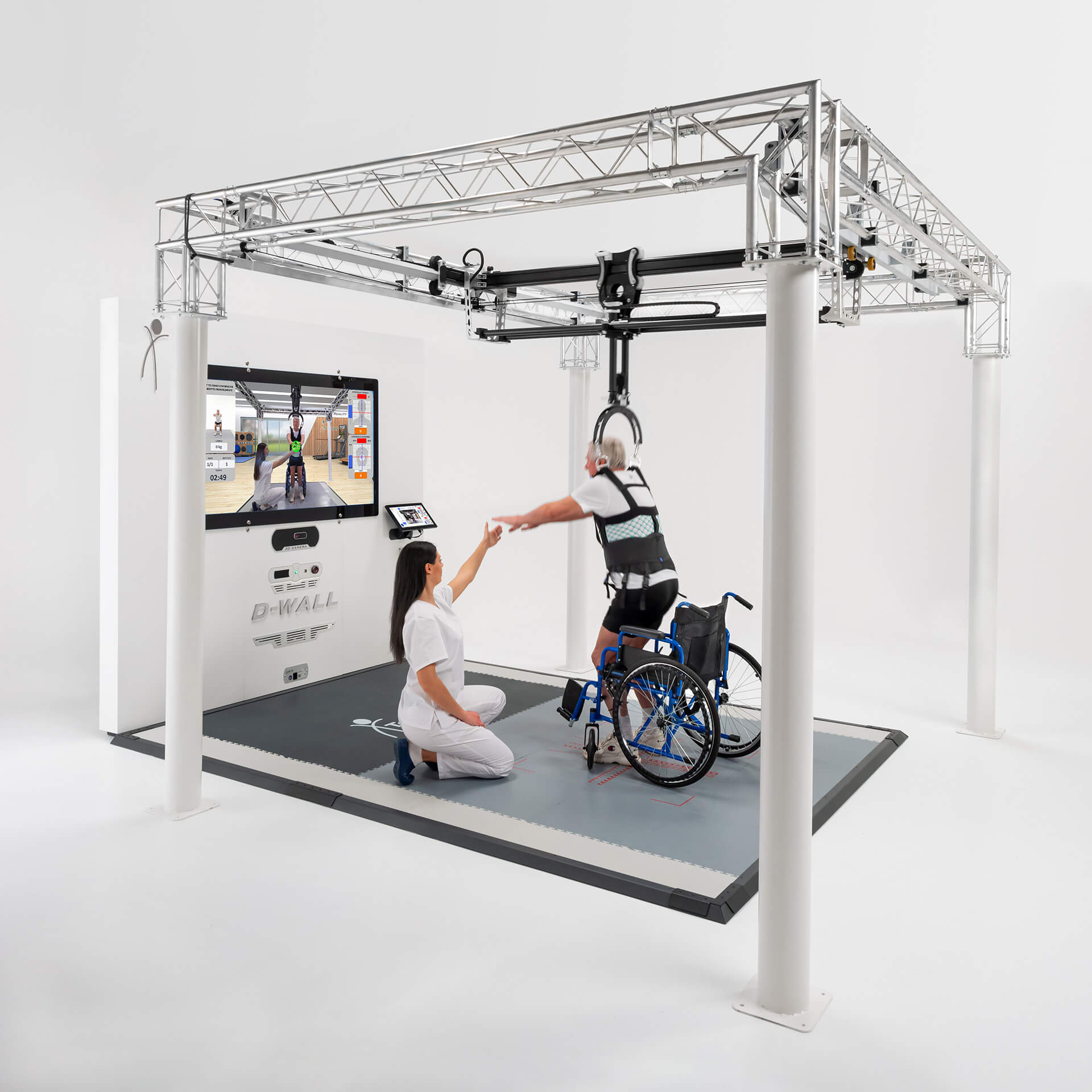

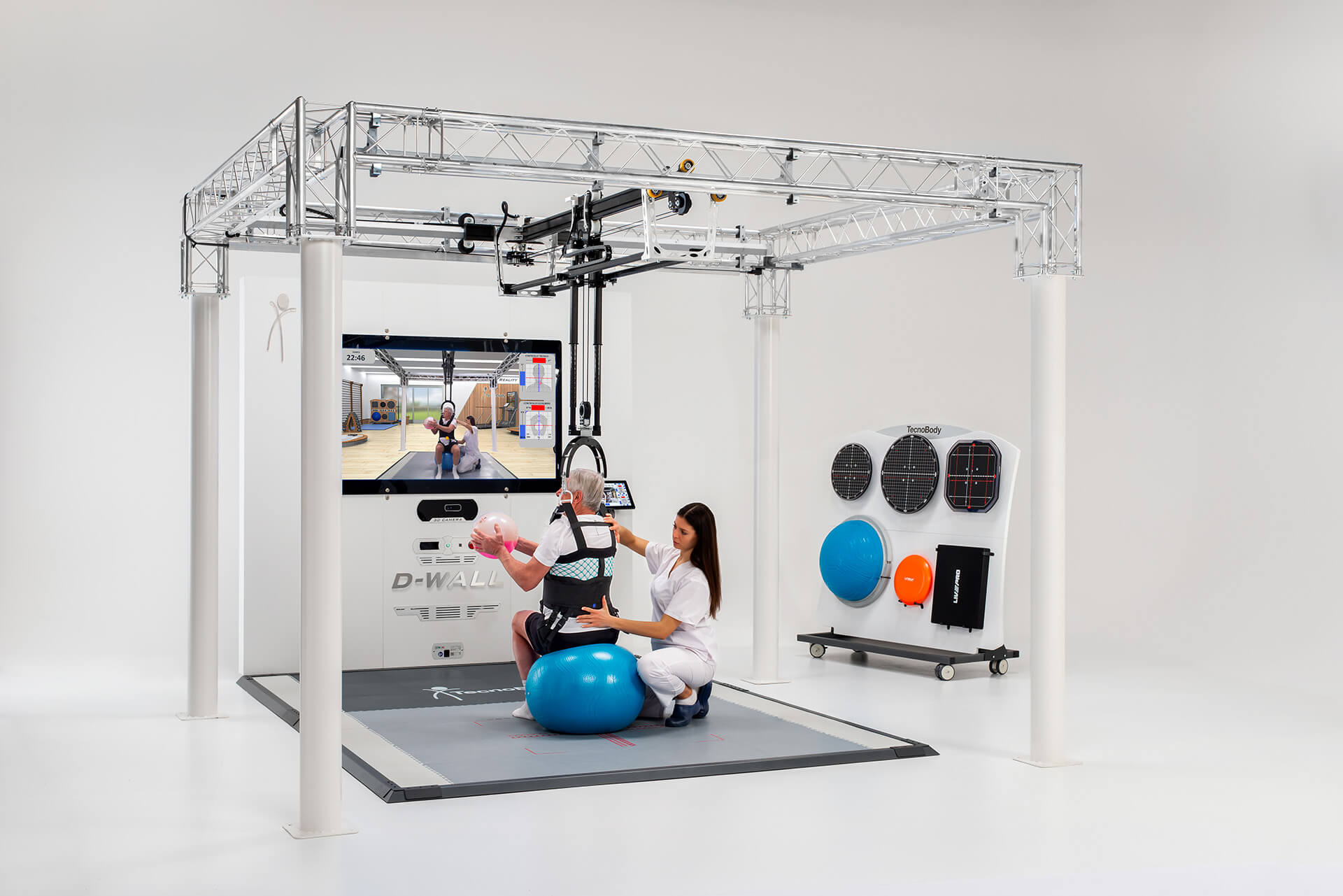

With all the features of D-WALL and the dynamic and multidirectional weight relief system of Smart Gravity 3D it is possible to intervene on:

  • recovery of global motor skills in the post-surgery phase
  • rehabilitation of patients suffering from walking problems
  • specific work for patients following stroke
  • training for patients suffering from Parkinson's and parkinsonism
  • serious consequences of neurological injuries

Design and innovation for maximum functionality

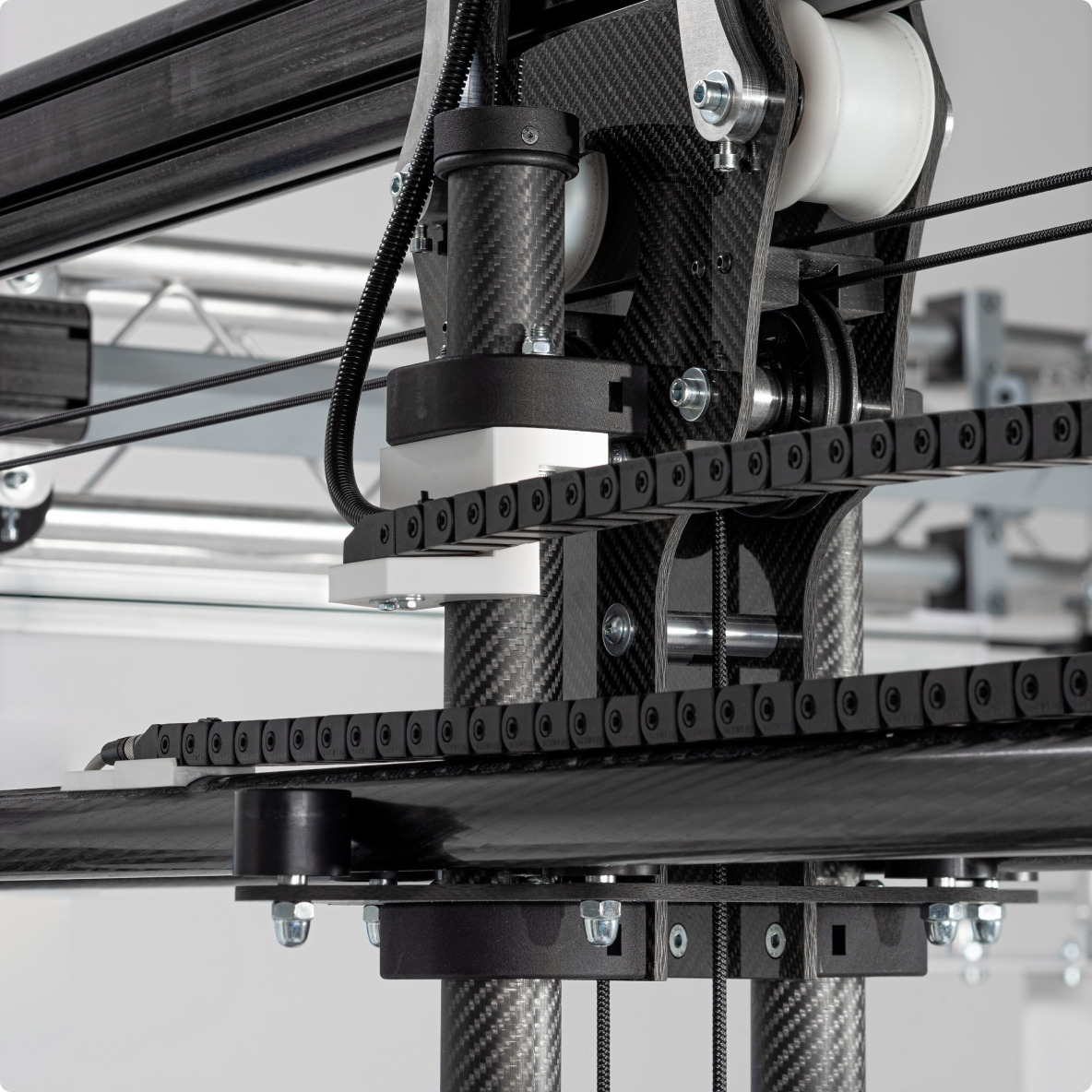

The Smart Gravity 3D system is characterized by a cable system with an actively controlled vertical axis. This system is able to implement the end effector (on the vertical axis) without influencing the movements of the other axes and allowing the motor to be positioned on the fixed structure.
The mobile structure is made of carbon fiber-based composite material to reduce inertia and friction on planar movements.
Every detail is designed to guarantee maximum functionality and safety during use with the patient.

Specifications

Smart Gravity 3D
Dimensions

420 x 390 x 278 cm

(Length x Width x Height)
Weight

300 Kg
Capacity

0-150 Kg
Vertical excursion

120 cm
Supply

230 VAC, 50Hz
Absorbed power

750 W
Download data sheet
App & Cloud

App & Cloud

Rehab, Health Fitness, Sport Performance: 3 versions with specific exercises guarantee your patient or athlete the best health and movement experience, based on the path that the user can follow within your centre.

With the TecnoBody Cloud you have always guaranteed the interconnection between the systems in our range and the most immersive experience for your professionalism and your customers.

With the TecnoBody APP and Cloud you redefine your working method in the studio or in the gym and access the possibility of building a new relationship with your patient or athlete.

Find out more
